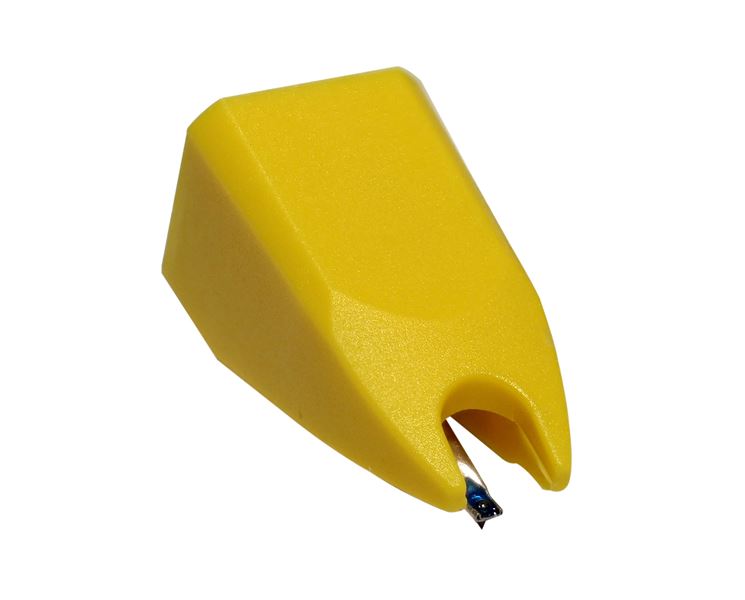

Ortofon Hi-Fi Pick it Sonar Replacement Stylus
Ortofon Hi-Fi Pick it Sonar Replacement Stylus
Regular price
$138.00 AUD
Regular price
$143.00 AUD
Sale price
$138.00 AUD
Unit price
per
Couldn't load pickup availability
Technical specifications
Output voltage - 4.5 mV
Frequency response - 20 - 22.000 Hz
Channel separation - 20 dB @ 1kHz
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Spherical
Stylus tip radius - R 18 µm
Tracking force range - 1.5 - 2.0 g
Tracking force, recommended - 1.75 g
Tracking angle - 20°
Internal inductance - 750 mH
Recommended load resistance - 47 kΩ
Recommended load capacitance - 200-500 pF
Stylus colour - Yellow
Stylus weight - 5 g
Recommended for Pro-Ject TT the Beatles Yellow Submarine and Ortofon Sonar Pickup.
