Vinyl Groove Gear

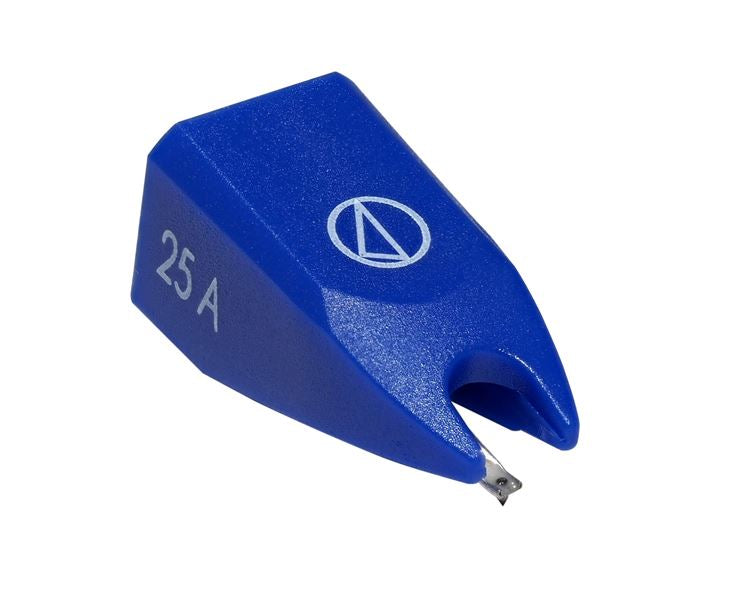

Ortofon Hi-Fi Pick it 25A Replacement Stylus
Ortofon Hi-Fi Pick it 25A Replacement Stylus
Regular price
$110.00 AUD
Regular price
$115.00 AUD
Sale price
$110.00 AUD
Unit price
per
Couldn't load pickup availability
Technical specifications
Output voltage - 5.5 mV
Frequency response - 20 - 24.000 Hz
Channel separation - >25dB @ 1kHz
Compliance, dynamic, lateral - 25 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.25-1.75 g
Tracking force, recommended - 1.5 g
Tracking angle - 20°
Internal inductance - 580 mH
Recommended load resistance - 47 kΩ
Recommended load capacitance - 200-600 pF
Stylus colour - Blue
Stylus weight - 5 g
Recommended for Pro-Ject Pick it 25A cartridge
