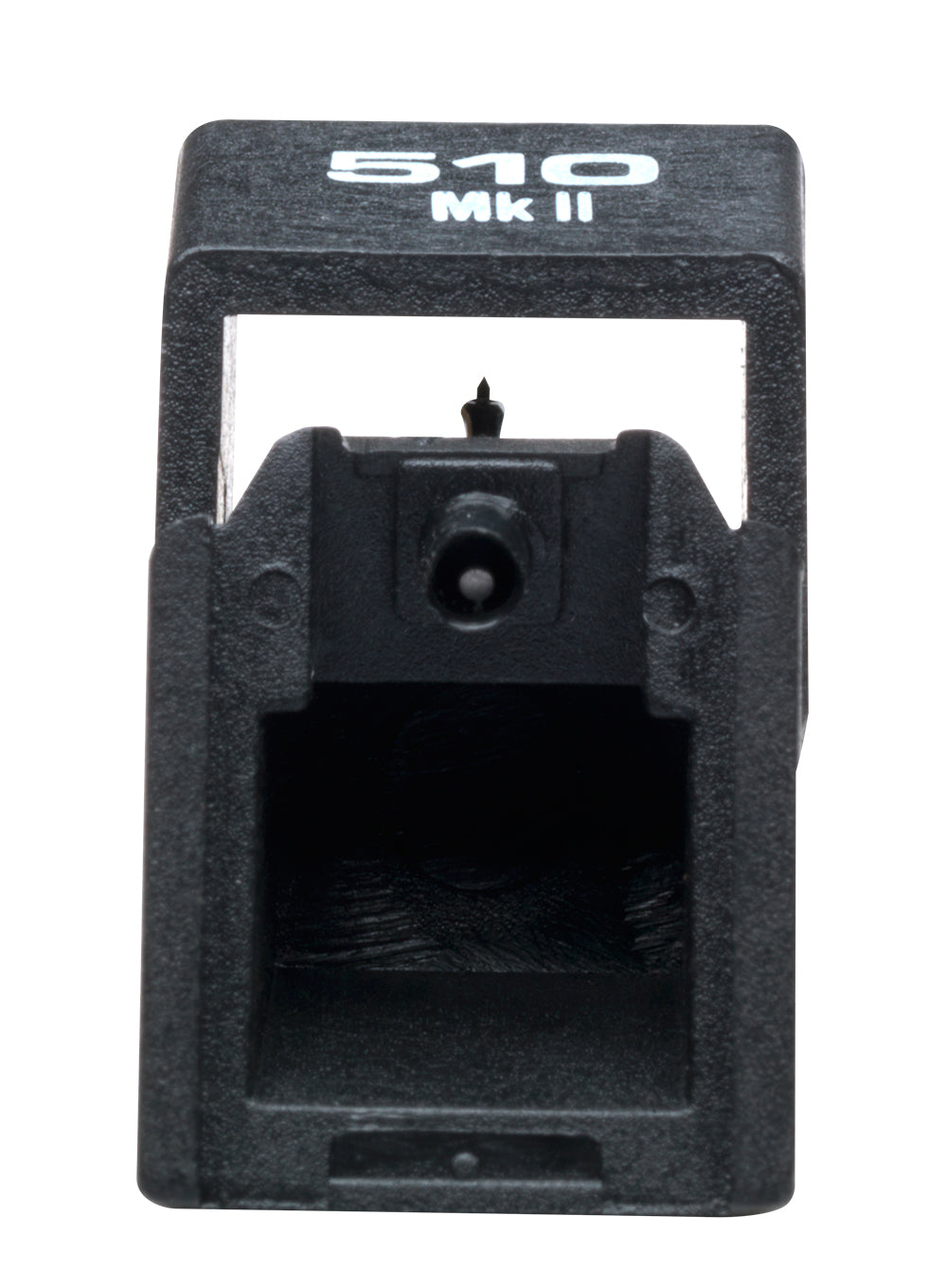

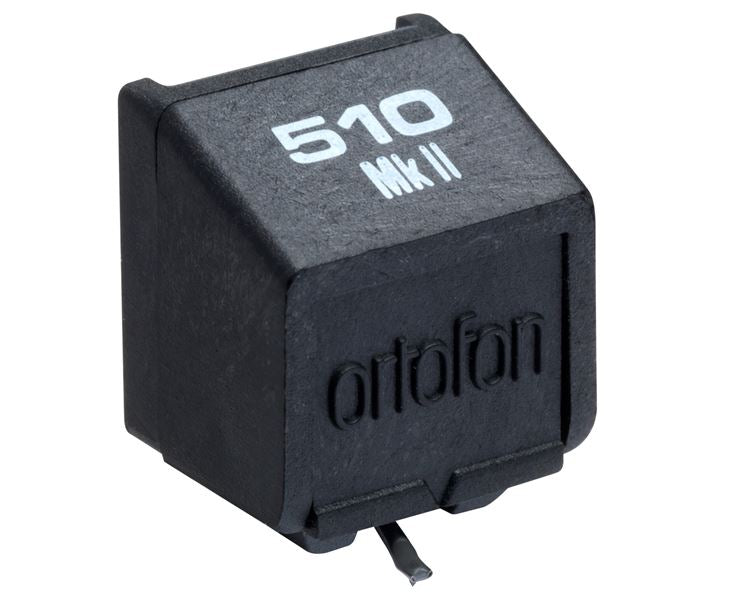

Ortofon Hi-Fi 510 MkII Replacement Stylus
Ortofon Hi-Fi 510 MkII Replacement Stylus
Regular price
$160.00 AUD
Regular price
$165.00 AUD
Sale price
$160.00 AUD
Unit price
per
Couldn't load pickup availability
Technical specifications
Frequency response - 20-20.000 Hz + 3 /- 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
*) Typical value
Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended - 1.5 g (15 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for Series 500 Mkll, 510, 510 P, Alfa
